Loader Parts Yakima - Loaders are heavy equipment that is used in many industries. They specialize in moving and loading materials including snow, raw minerals, asphalt, gravel, demolition debris, rock, woodchips, sand, snow, dirt, grain, feed and the like. Loaders transport material into rail cars, dump trucks, feed-hoppers and conveyor belts. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. Removable or permanently mounted attachments make up the loader assembly. The bucket can be interchanged with other tools. Forks can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
Font loaders refer to loaders that feature a front bucket. Smaller loader tractor models can utilize a backhoe attachment and are referred to as loader backhoes, backhoe loaders or JCBs. This equipment is utilized for laying pipe, loading trucks, digging, clearing debris and similar jobs. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. The loader bucket capacity is in the range of half a cubic meter to 36 cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Construction sites commonly employ track models since rubber tires can be easily damaged from sharp nails and similarly sharp things. Wheels provide better mobility and speed and less damage to paved surfaces compared to tracks; however, tracks provide better traction. Within construction locations, loaders are used to materials and digging tools within the job site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
When transporting lighter items such as small gravel, peat or woodchips, special high-tip buckets are used to simplify bucket emptying when it is at full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. A variety of loader sizes are on the market to handle numerous jobs.
There are not automotive steering features on large loaders compared to standard tractors with backhoes or a front bucket. This type of loader accomplishes steering with a hydraulically actuated pivot point that is found between the front and rear axles, more commonly known as articulated steering. This design enables the front axle to be solid and the greater weight to be carried by the machine. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

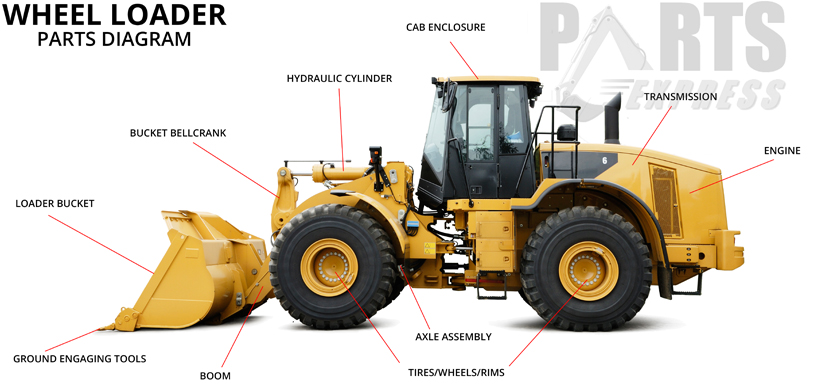

Major Components
Major items include:
• Engine (usually diesel)
• Transmission components (axles, gearbox, tracks or wheels, motors, pumps, etc.,
• Hydraulic components (valves, motors, pumps)
The engine controls the transmission and the hydraulics and these move the front attachments including a sweeper, forks, a bucket, etc. This equipment is utilized to handle sand, gravel, manure and similar items within model-specific lifting specifications.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. New wheel loaders have the same front and rear wheel dimensions with articulation.
Armored Wheel Loaders
Various military applications rely on armored Caterpillar 966 wheel loaders to conduct combat engineering and construction missions. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is placed on the machine to offer protection from Molotov cocktails, rocks, stones and gunfire. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. This kind of tractor loader was built to facilitate numerous farming activities. They are highly versatile and lower in cost in comparison to Telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
Popular additions to CUTs or compact utility tractors and farm tractors are front-end loaders or FELs. Smaller, compact models range in horsepower from 18 to 50, an ideal amount of power for groundskeeping and landscaping jobs. There are curved arm models, semi-curved and the traditional dogleg model design.
Compact utility tractors with front-end loaders are capable of doing a variety of jobs and come with numerous attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A quick coupler or quick attach system or QA enables attachments such as bale spears, pallet forks and buckets to be added or removed with ease.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A skid-steer loader, skid loader or skidsteer refers to a small engine powered loader featuring a rigid frame. This unit features lift arms enabling it to easily attach to numerous tools. Mechanically synchronizing on each side, these machines generally have four wheels. The left side drive wheels are capable of being driven independently from the right side. Usually, the wheels keep a straight, fixed body alignment without separate steering options.
Differential steering accomplishes turning maneuvers. The right and left wheel pairs operate at different speeds, causing the machine to turn by dragging or skidding fixed-orientation wheels along the ground. Torsional forces due to the dragging motion are prevented thanks to the strong wheels and rigid frame. Tracked vehicles and skid steers are capable of destroying soft road surfaces and fragile environments due to high ground friction.
There are specifically designed wheels that convert low ground friction. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. These functions are desirable for jobs requiring a loader that is compact and agile. Certain models known as multi-terrain loaders rely on tacks instead of wheels.
The lift arms in skid loaders are found beside the operator and there are pivot points located behind the shoulder’s of the operator. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. These machines are similar to other front loader models and are capable of transporting items from one location to the next via the bucket for pushing items across the ground or loading them into a trailer.
History of Tracked Loaders
Tracked loaders are complete with a chassis for loading items and digging materials with a loader Three notable design evolutions have made this machine more efficient and versatile. This equipment is capable of numerous tasks, making it a popular addition to fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Tracked loaders were commonly utilized for transporting stockpiled items into loading trucks and rail cars.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This caused tons of heavy wear issues on the undercarriage and front idler wheels. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader is a machine that features a swinging boom and a rigid frame. The boom is capable of travelling 180 degrees or more. The boom can travel up to 180 degrees or farther, depending on the model. These machines are used mainly in the railroad industry for laying rail. There are a variety of attachments including buckets, forks and magnets that can be added on for more diverse applications. Agricultural applications rely on smaller machines. Swingloaders are useful in limited space applications. This loader can lift and deposit on all sides.
